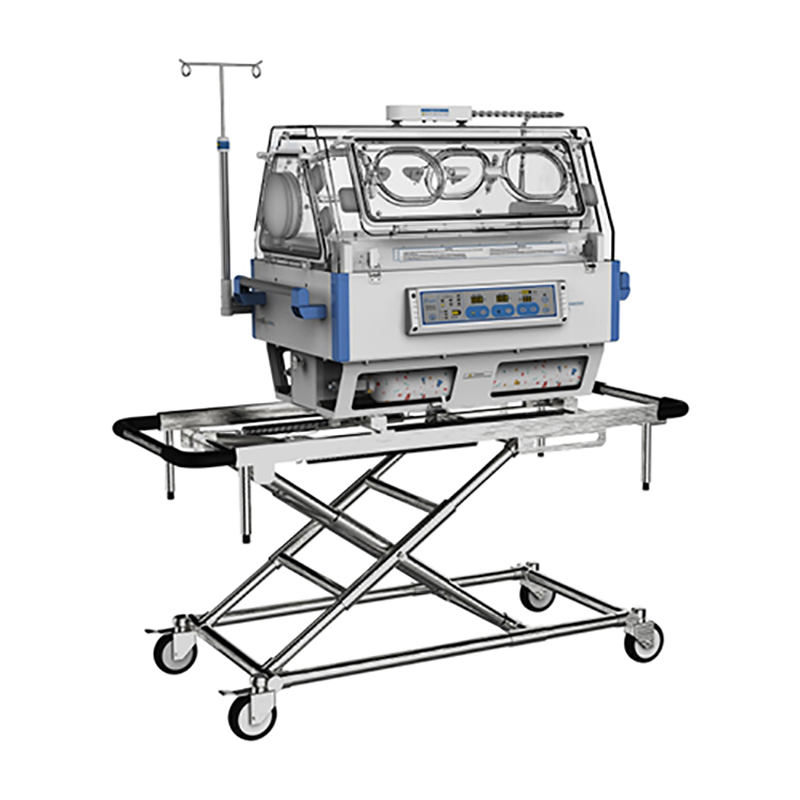

RC-BT100 Transfer Baby Infant Incubator
Home NICU Solution INFANT INCUBATOR RC-BT100 Transfer Baby Infant Incubator
RC-BT100 Transfer Baby Infant Incubator
Product main characteristic
Fan with low noise and long life-span
Temperature deviation and over temperature could be amended in front panel diredtly
A second theraml cut-out function for more safety
Six operating windows, two side access operating windows can be swiveled
Double wall hood and with white LED lighting lamp
With two oxegen cylinder and oxygen flow meter
An adjustable height trolley can be optional
Description
Product Technical data
power supply: AC 110/220V; 60/50Hz
power input: 260W
operating environment:
Ambient temperature: 10℃~30℃
Relative humidity: 30%~75%
Atmospheric pressure: 700hPa~1060hPa
Air velocity of flow: ≤1m/s
Air temperature control range: 25℃~38℃
Skin temperature control range: 32℃~37.5℃
Air (or skin) temperature sensor accuracy: ±0.3℃
Temperature fluctuation: ±1℃
Uniformity of mattress temperature: ≤1.5℃
Air temperature deviation alarm: ±3.0℃
Skin temperature deviation alarm: ±1.0℃
Warm-up time: ≤40 min
Internal noise level: ≤60dB(A)
Main battary: DC 12V 40AH, Li-ion battery
Auxiliary battery: DC 8.4V 0.17AH, Li-ion battery
Air filter:0.5μm
Transport and storage
Environment temperature: -40~+55℃
Environment humidity: ≤95%RH
Atmospheric pressure: 500~1060 hPa
Standard configration and optional parts
Main body (including the transparent double hood, control system, infant bed, mattress, skin temperature sensor, two oxygen cylinder ,IV pole and lighting lamp)
Optional parts: Trolly ( two specifications for option )
Product Package Information:
Size (hood and controller): 1090×625×845(mm),N.W.:60.5Kg; G.W: 110Kg
Trolley: 1405×650×940(mm) or 2080×640×470(mm), N.W.:27Kg; G.W: 57Kg or N.W.:35Kg; G.W: 65Kg
